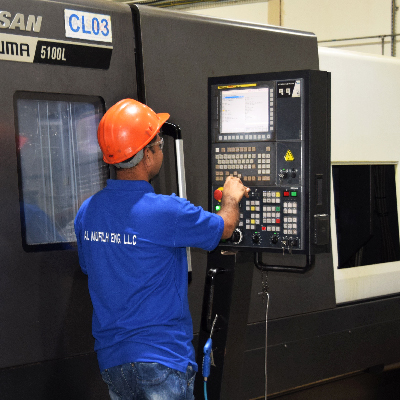

DOOSAN PUMA 5100 L - CL03

SPECIFICATIONS

HEAVY DUTY MACHINE - MAX TURNING DIA UP TO 600 MM AND LENGTH 2000 MM 10 STATION TURRET

STEADY REST: MAX 310 MM MIN 40 MM AUTOMATIC MOVING

TAIL STOCK : MAX LENGTH - 2100 MM MIN LENGTH - 600MM (WITH EXTENSION) MT 5 LIVE CENTRE MANUAL MOVING

CHUCK : 21 INCH (300 MM LENGTH CLAMPING IN WITHOUT STEADY REST) CHUCK BORE SIZE 165.0

Max Job Size : Thick (X) - for Round :- ∅ 450 - ∅ 550 and Length (Z) 2.0 Meters

COUNTRY OF ORIGIN : KOREA

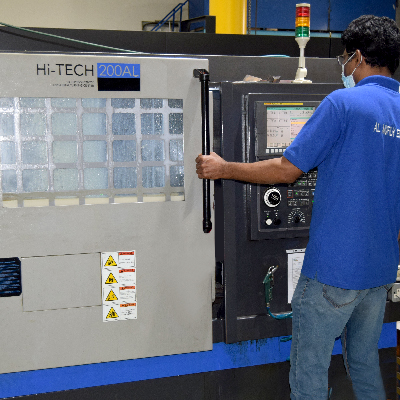

HWACHEON HITECH 200AL - CL01

SPECIFICATIONS

HEAVY DUTY MACHINE - MAX TURNING DIA UP TO 260 MM AND LENGTH 600 MM 12 STATION TURRET

TAIL STOCK : MAX LENGTH - 600MM MIN LENGTH - 100MM

CHUCK : 8 INCH CHUCK BORE SIZE 49.0

Max Job Size : Thick (X) - for Round :- ∅ 300 and Length (Z) 600

COUNTRY OF ORIGIN : KOREA

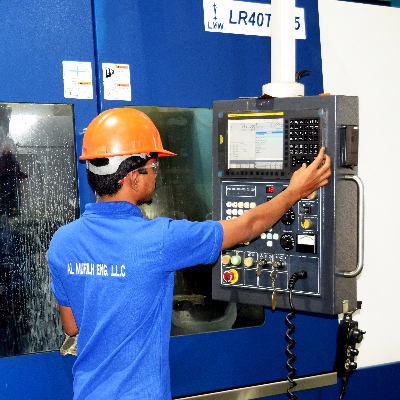

LMW LR 40 T - CL02

SPECIFICATIONS

HEAVY DUTY MACHINE - MAX TURNING DIA UP TO 350 MM AND LENGTH 1.5 METER

STEADY REST:MAX 310 MM MIN 40 MM MANUAL MOVING

TAIL STOCK : MAX LENGTH - 1600 MM MIN LENGTH - 500 MM MT6 LIVE CENTRE MANUAL MOVING

CHUCK : 15 INCH CHUCK BORE SIZE 102.0MM

Max Job Size : Thick (X) - for Round :- ∅ 300 - ∅ 350 and Length (Z) 1.5 Meters

COUNTRY OF ORIGIN : INDIA

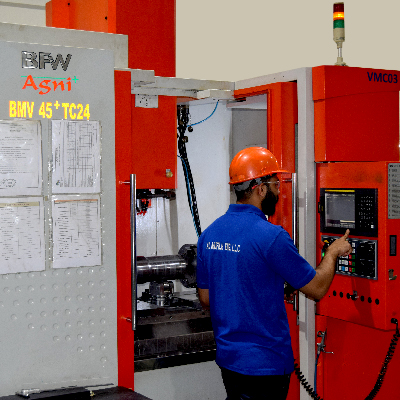

BFM V45 - VMC 01

SPECIFICATIONS

CNC MILLING MACHINE TABLE SIZE 900x450 AND TRAVEL OF 600X450X500 AND MAX WORK LOAD 500KG RPM 8000

TURN TABLE DIAMETER - 250MM TABLE CENTER HEIGHT-160MM CENTER BORE DIAMETER- 60MM LOAD CAPACITY HORIZONTAL AND VERTICAL-350&180 MACHINING CAPACITY WITHOUT JIG PLATE-300MM MACHINING CAPACITY WITH JIG PLATE -600MM MAX

COUNTRY OF ORIGIN : INDIA

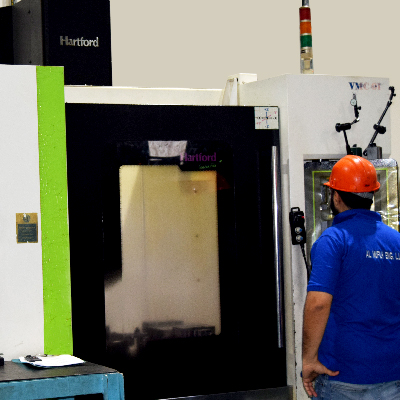

HARTFORD LG 1000 - VMC 01

SPECIFICATIONS

CNC MILLING MACHINE TABLE SIZE 1150X510 AND TRAVEL OF 1000X510X630 AND MAX WORK LOAD 700KG RPM 10000.

COUNTRY OF ORIGIN : TAIWAN

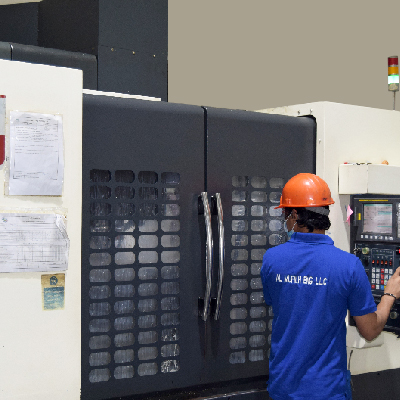

AMS 1060V - VMC 02

SPECIFICATIONS

NC MILLING MACHINE TABLE SIZE 1150X510 AND TRAVEL OF 1000X510X630 AND MAX WORK LOAD 700KG RPM 8000.

COUNTRY OF ORIGIN : TAIWAN

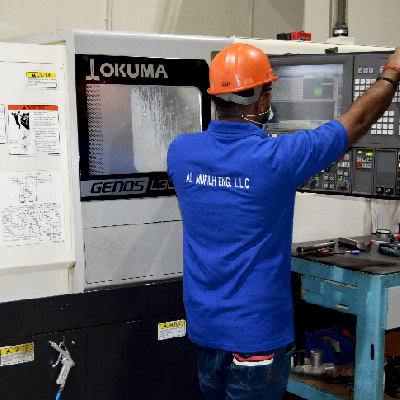

OKUMA GENOS L3000e - TM 01

SPECIFICATIONS

HEAVY DUTY MACHINE - MAX TURNING DIA UP TO 300 MM AND LENGTH 420 MM 12 STATION TURRET AND LIVE TOOLS

TAIL STOCK : MAX LENGTH - 420 MM MIN LENGTH - 100 MM

CHUCK : 10 INCH CHUCK BORE SIZE 70.0MM

Max Job Size : Thick (X) - for Round :- ∅ 300 and Length (Z) 420

COUNTRY OF ORIGIN : KOREA

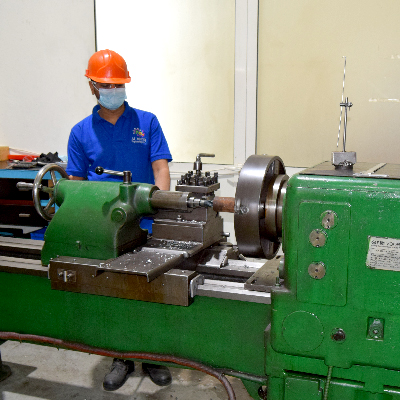

VDF - EL 01

SPECIFICATIONS

IN B/W CENTER DISTANCE=1.5METERS, HOLD UP TO DIA Ø 370 MM

Max Job Size : Thick (X) - for Round :- ∅ 370 and Length (Z) 1.5 METER

COUNTRY OF ORIGIN : GERMANY

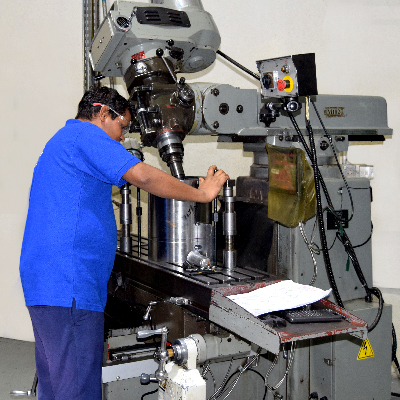

RECKERMANN - MI 01

SPECIFICATIONS

CONVENTIONAL UNIVERSAL MILLING

TABLE SIZE 1300x400

COUNTRY OF ORIGIN : KOREA

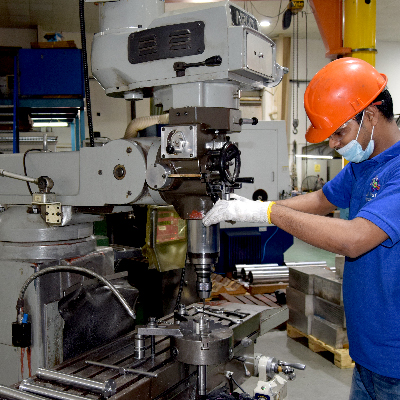

LARGO - MI 02

SPECIFICATIONS

CONVENTIONAL M1TR (MILLING & DRILLING MACHINE)

TABLE SIZE : 1000 X 400

COUNTRY OF ORIGIN : TAIWAN
